DIGITAL TV ANTENNA
In stock
SKU
TV
$100.00
Quick Overview
- Frequency range: 174-230 MHz; 470-730 MHz
- Channels: Ch.5-12 ; Ch.21-60
- Impedance: 75Ω
- No. of Elements: 16
- Antenna Gain: 6-13dBi; 11-13dBi
| Products | Order Code | Description | Quantity |

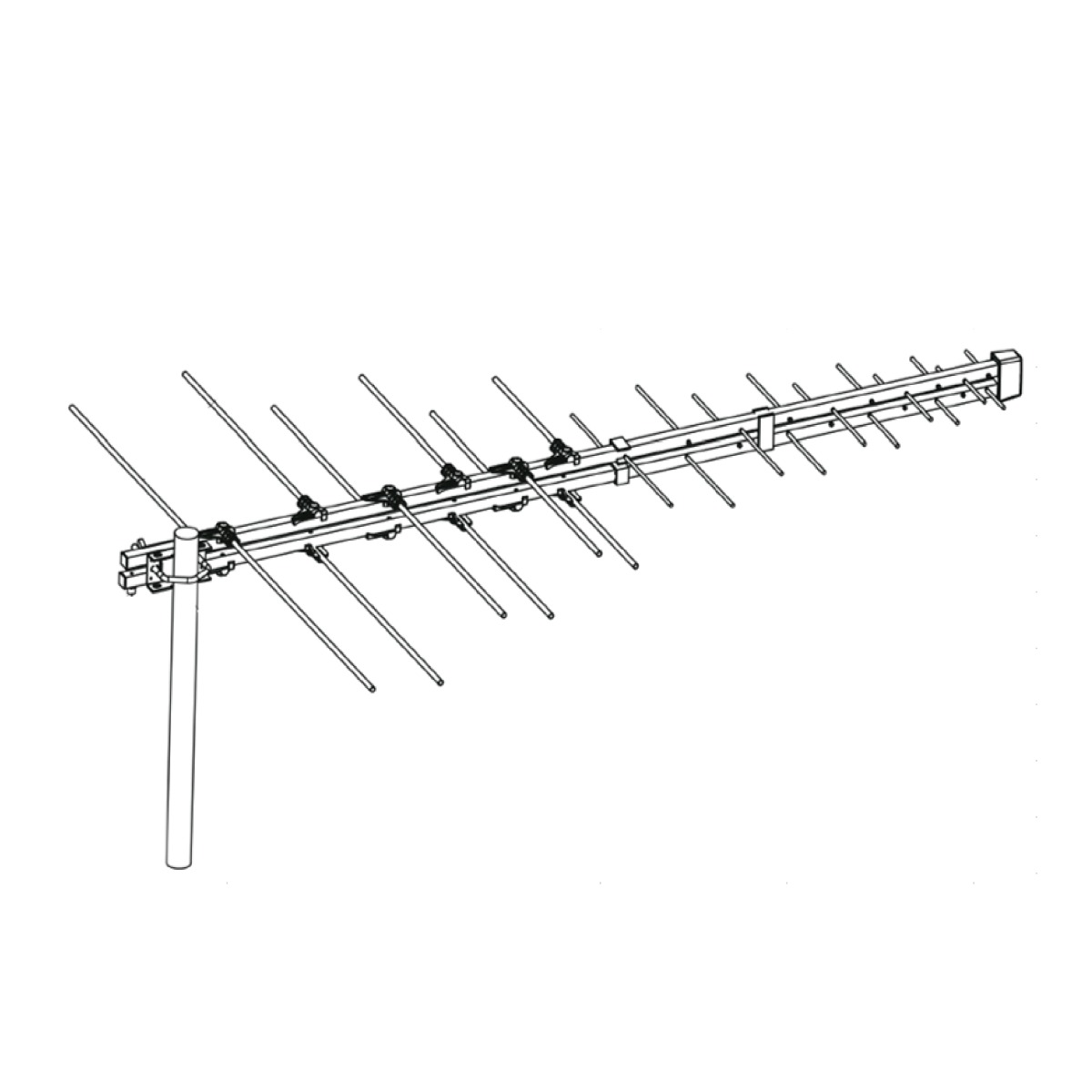

 | Silver Point Antenna TV1 | Frequency range : 174-230 MHz; 470-730 MHz Channels: Ch.5-12 ; Ch.21-60 Impedance: 75Ω No. of Elements: 16 Antenna Gain: 6-13dBi; 11-13dBi Front-back Ratio: 13-18dB Beam Width H/V: H70°/V120° ; H39°/V54° Antenna Length : 1,211mm | 20 |

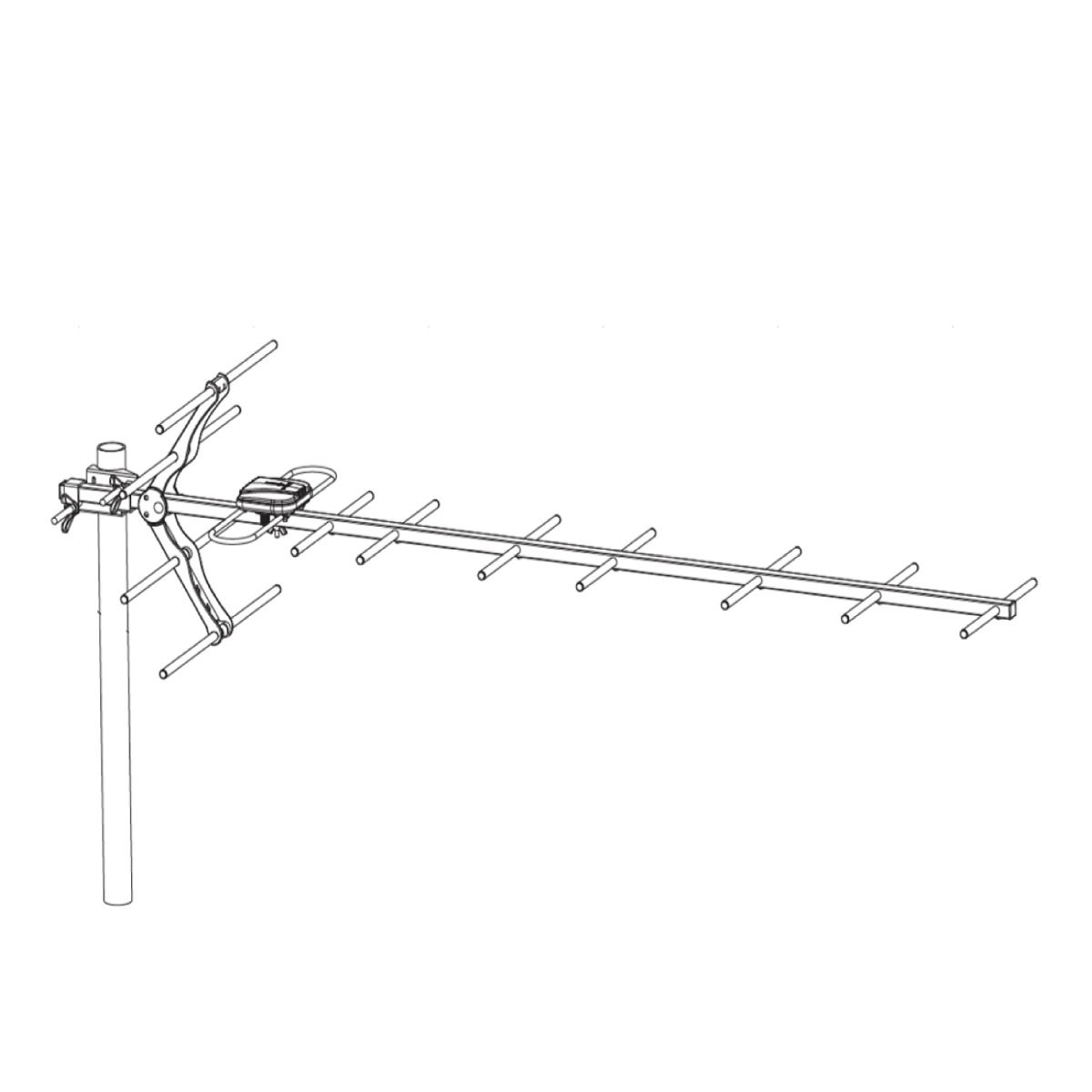

 | Silver Point Antenna TV2 | Frequency range: 470-694 MHz Channels: Ch. 21-48 Impedance: 75Ω No. of Elements: 10 Antenna Gain: 10-16dBi Front-back Ratio: 15-20dB Beam Width H/V: H44°/V49° Antenna Length : 1,080mm | 20 |

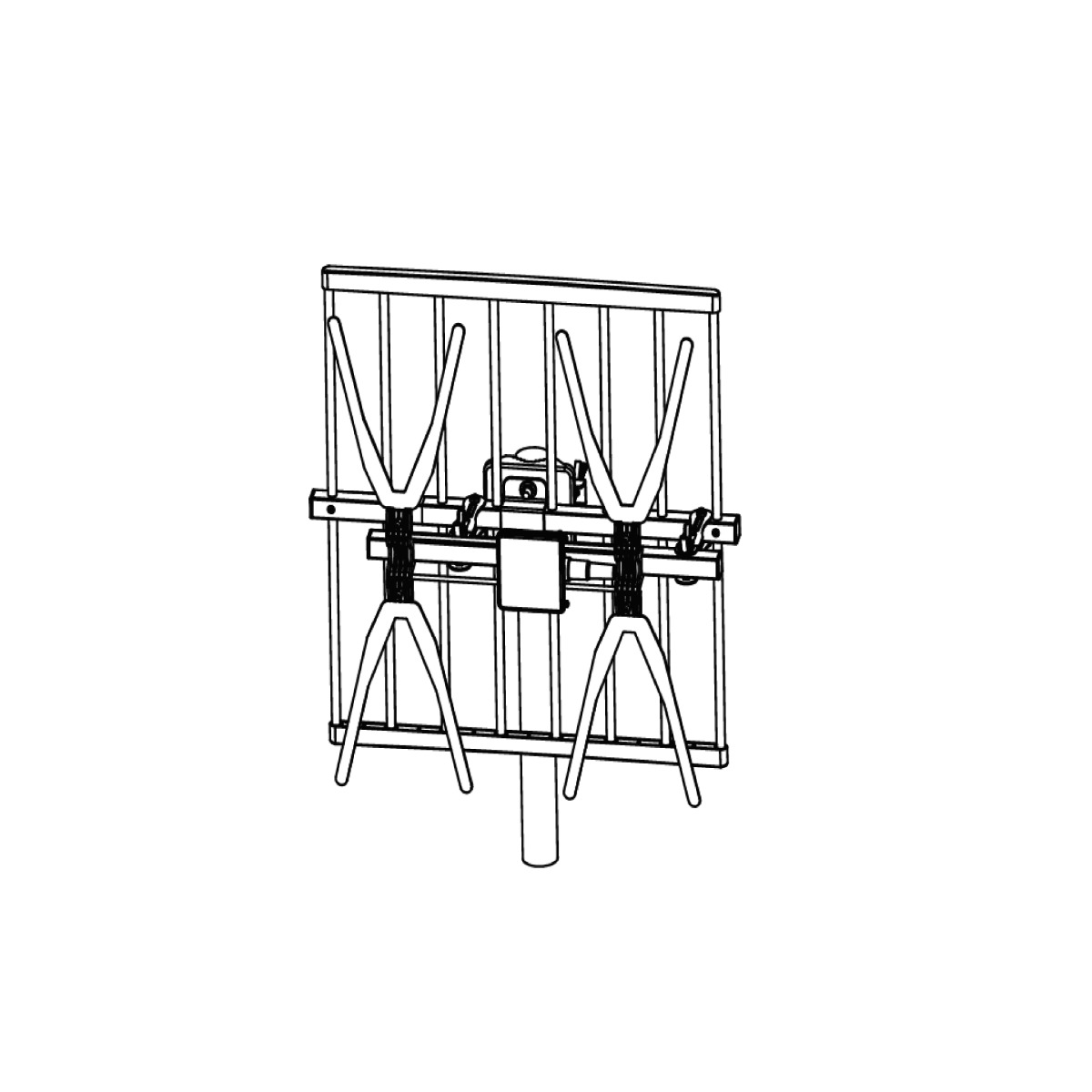

 | Silver Point Antenna TV3 | Frequency range : 470-694 MHz Channels: Ch. 21-48 Impedance: 75Ω No. of Elements: 2 Antenna Gain: 7-11dBi Front-back Ratio: 15-20dB Beam Width H/V: H55° Antenna Length : 410mm | 20 |

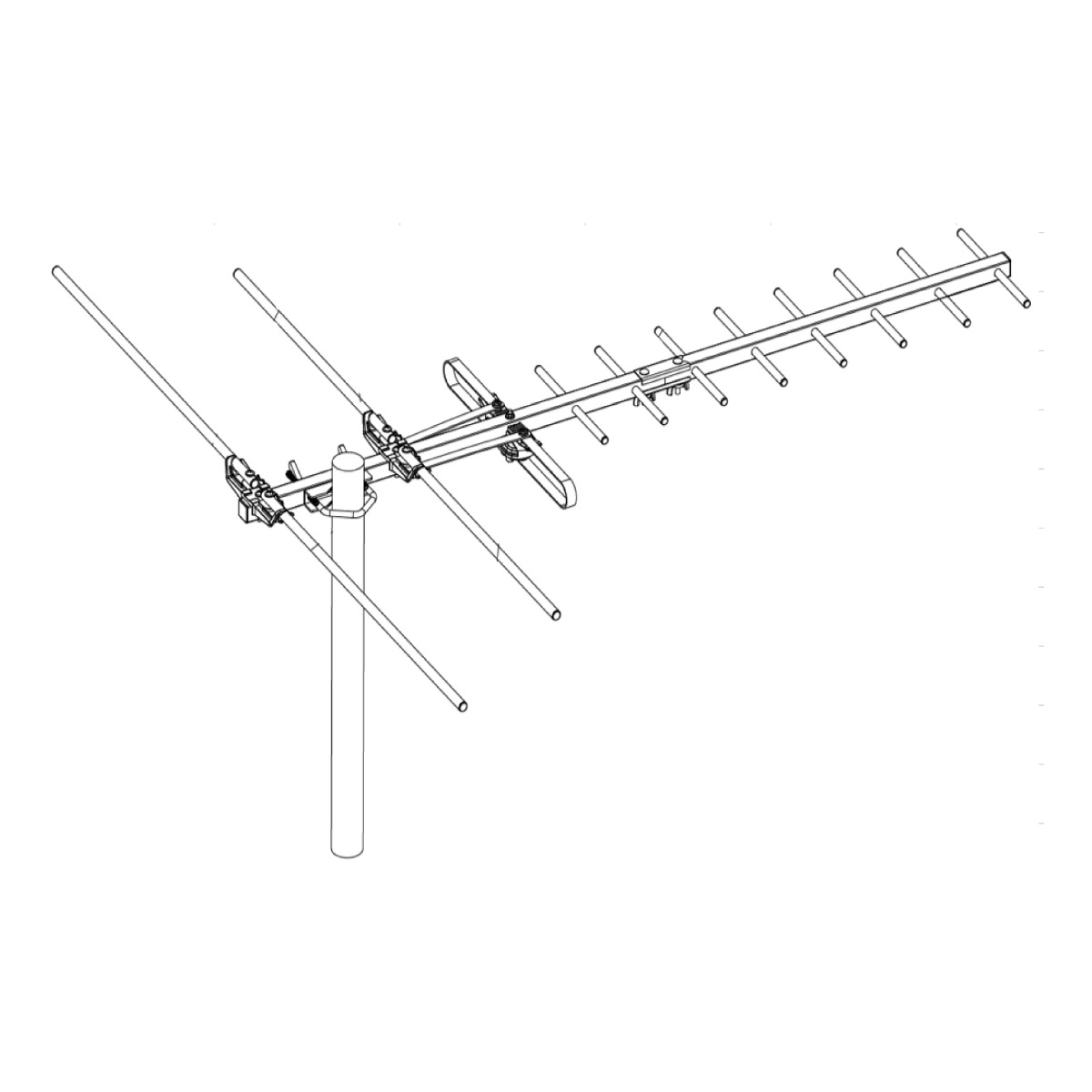

 | Silver Point Antenna TV4 | Frequency range : 174-230 MHz; 470-694 MHz Channels: Ch.5-12 ; Ch.21-48 Impedance: 75Ω No. of Elements: 11 Antenna Gain: 4-6 dBi; 9-12 dBi Front-back Ratio: 7-12 dBi; 10-16 dBi Beam Width H/V: H80°/V90° ; H50°/V70° Antenna Length: 955mm | 20 |
