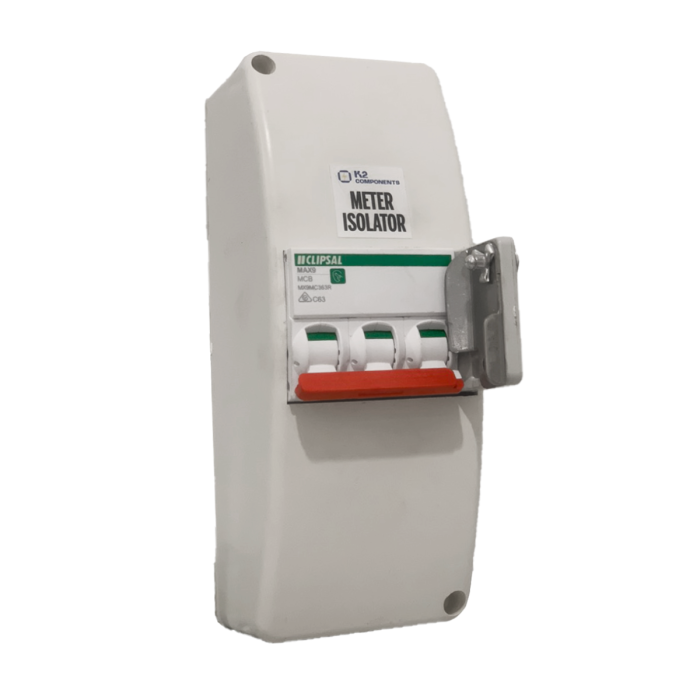

Meter Isolator Lock-off Kit MI63/6L-3P
In stock
SKU
MI63/6L-3P
$100.00
Quick Overview
- Meets SAPN Service and Instalation Rules Requirement (S&IR) Clause 7.5 - (S&IR) 7.5.1.2
- Meets the requirements of AS3000:2018 & AS/NZS 60695
- Accepted by ETSA Utilities &SA Power Networks locking device (6mm Shackle Diameter Padlocks).
- Suitable for Meter Enclosure upgrades to ensure SAPN compliance.
- Equipped with quality Clipsal® 4CB363/6 Miniature Circuit breaker (63A / 6kA).
- 3.5 Pole Cover IP30 ABS, Fire Resistant, DIN Rail - Sealable
- Dimension: 190L x 72W x 68Hmm Three Phase 63A/6kA
Key Features
- Meets SAPN Service and Instalation Rules Requirement (S&IR) Clause 7.5 - (S&IR) 7.5.1.2
- Meets the requirements of AS3000:2018 & AS/NZS 60695
- Accepted by ETSA Utilities &SA Power Networks locking device (6mm Shackle Diameter Padlocks).
- Suitable for Meter Enclosure upgrades to ensure SAPN compliance.
- Equipped with quality Clipsal® 4CB363/6 Miniature Circuit breaker (63A / 6kA).
- 3.5 Pole Cover IP30 ABS, Fire Resistant, DIN Rail - Sealable
- Dimension: 190L x 72W x 68Hmm Three Phase 63A/6kA
AUSTRALIAN MADE 1.5 POLE ISOLATOR COVER
Flame Retardant full compound ABS injection moulded plastic
| Manufactured using ABSTRENE M450 R01 R03 | |||
Property | Test Method | Units | Value |
| Tensile @ Yeild(50mm/min) | ISP 527 | Mpa | 38 |
| Glow Wire (960 C) | AS/NZS 60695 | C | Pass |
| H.D.T (182MPa) @ 3.2 mm | ISO 75 | C | 68 |
