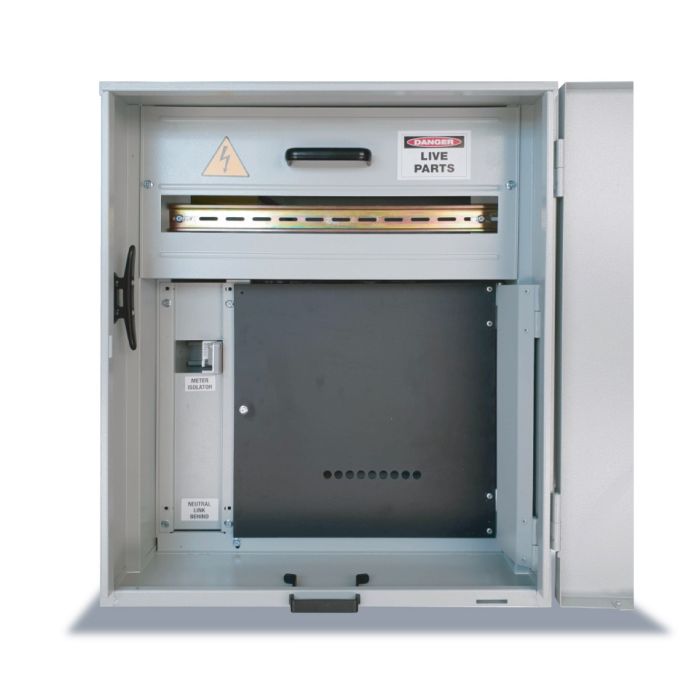

SA Type 1 Rebated
In stock
SKU
MES121R
A$100.00
Quick Overview
- SA Power Network Approved
- Designed to meet AS3000 Standard
- IP23 Protection Rating
- Powdercoat Finish (RAL7035)
- Pre-drilled Type X Meter Panel (H350mm x W350mm)
Key Features
- SA Power Network Approved
- Designed to meet AS3000 Standard
- IP23 Protection Rating
- Powdercoat Finish (RAL7035)
- Pre-drilled Type X Meter Panel (H350mm x W350mm)
- Full 21 Module DIN Capacity Switchboard
- Quality Hinged Door (Removable)
- Generous Wiring Room & Cable Access Top / Bottom
- 3 Additional Neutral Connections Provided For RCD
- Parts Bag Included
- Provision for Lockable door
- 63A Meter Isolator
- Optional XL wide panel
- Available In Rebated or Non-Rebated (Straight Sided) Options
- Optional Plinth & Rain Hood For Free Standing Application (Straight Sided Only)

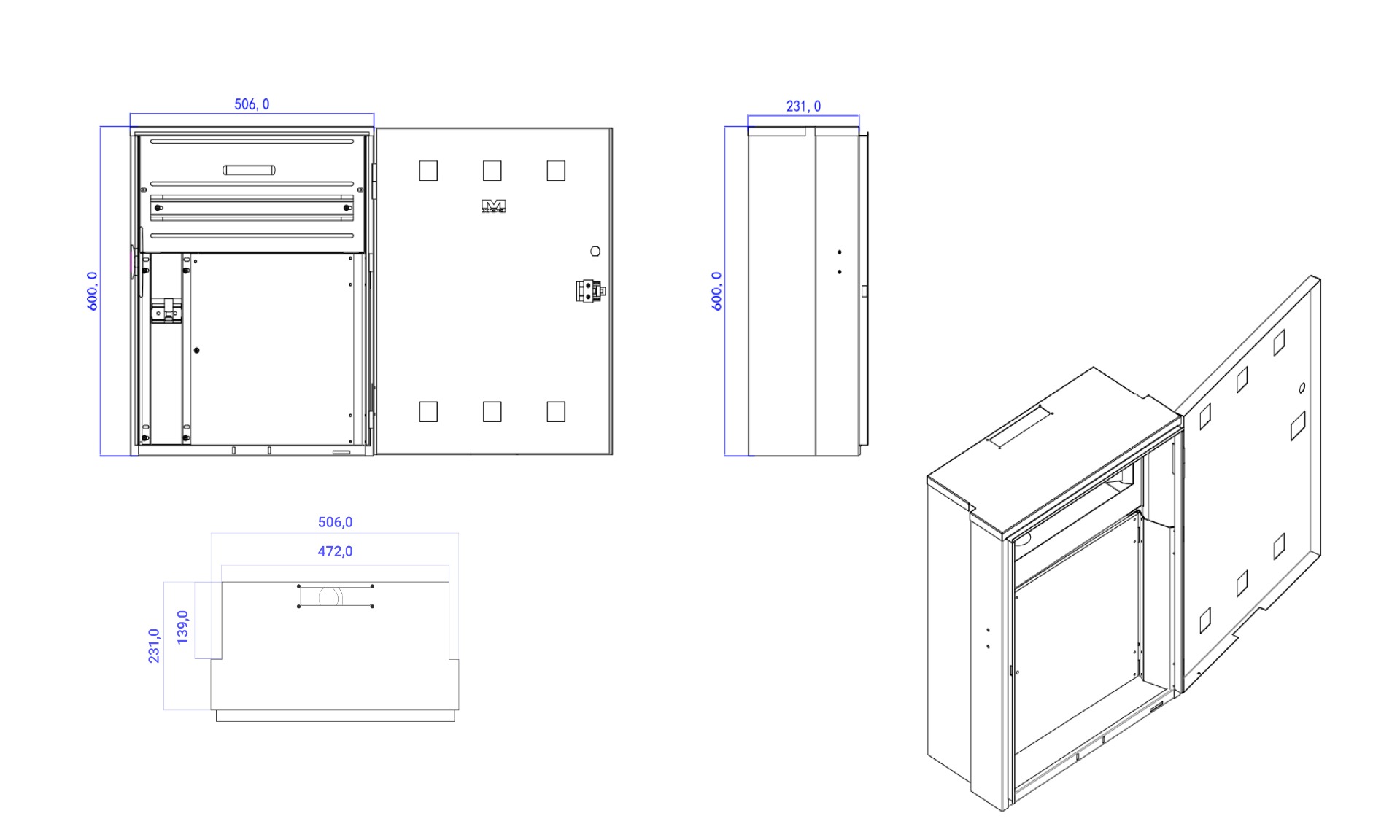

| Specifications | Width | Height | Depth |
| Enclosure Size | 500 | 600 | 250 |
| Meter Panel | 350 | 350 | 6 |
| Neautral Grid | 11 x Ø5mm (Suits up to 10mm) 9 x Ø8mm (Suits up to 25mm) | ||
| Earth Grid | 10 x Ø5mm (Suits up to 10mm) 1 x Ø8mm (Suits up to 25mm) | ||
| SA Type 1 Rebated or Non-Rebated | |||||
| Order Code | Name | Meter Isolator | DIN | MCB Rating | Quantity |
| MES121R | SA Type 1 | Not Supplied | 21 Pole | No MCB Supplied | 20 |
MES121R-MI | SA Type 1 with Single Phase MI | Yes | 21 Pole | 1P 63A 6kA | 20 |
| MES121R-MI3P | SA Type 1 with Three Phase MI | Yes | 21 Pole | 3P 63A 6kA | 1 |
| Order Code | Name | Description | Quantity |
| DRS-1L | Door & Latch | Door with Latch & Higes - 1.0mm Powder Coated Steel | 1 |
| MPS1-D | SA Type 1 STD Pre-drilled Panel (Suits NR) | Meter Panel-350mm x 350mm Machined Meter Panel with Hinges | 1 |
| MPS1-B | SA Type 1 STD Panel-Blank (Suits NR) | Meter Panel-350mm x 350mm Blank Meter Panel with hinges | 1 |
