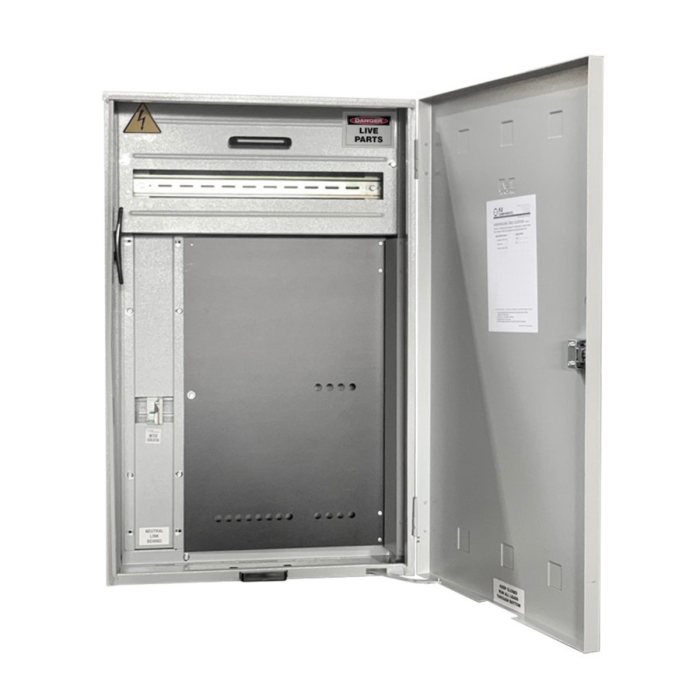

SA Type 2 Rebated
In stock
SKU
MES221R
A$100.00
Quick Overview
- SA Power Network Approved
- Designed to meet AS3000 Standard
- IP23 Protection Rating
- Powdercoat Finish (RAL7035)
- Pre-drilled Meter Panel (H550mm x W350mm)
SA Power Network Approved
- Designed to meet AS3000 Standard
- IP23 Protection Rating
- Powdercoat Finish (RAL7035)
- Pre-drilled Meter Panel (H550mm x W350mm)
- Full 21 Module DIN Capacity Switchboard
- Quality Hinged Door (Removable)
- Generous Wiring Room & Cable Access Top / Bottom
- 3 Additional Neutral Connections Provided For RCD
- Parts Bag Included
- Provision for Lockable door
- 63A Meter Isolator
- Optional XL wide panel
- Available In Rebated or Non-Rebated (Straight Sided) Options
- Optional Plinth & Rain Hood For Free Standing Application (Straight Sided Only)
| Specifications | Width | Height | Depth |
| Enclosure Size | 500 | 800 | 250 |
| Meter Panel | 350 | 550 | 6 |
| Neutral Grid | 11 x ø5mm (Suit up to 10mm) 9 x ø8mm (Suits up to 25mm) | ||
| Earth Grid | 10 x ø5mm (Suit up to 10mm) 1 x ø8mm (Suits up to 25mm) | ||
| SA Type 2 Rebated or Non-Rebated | |||||
| Order Code | Name | Meter Isolator | DIN | MCB Rating | Quantity |
| MES221R | SA Type 2 | Not Supplied | 21 Pole | No MCB Supplied | 10 |
| MES221R-MI | SA Type 2 with Single Phase MI | Yes | 21 Pole | 1P 63A 6kA | 10 |
| MES221R-MI3P | SA Type 2 with Three Phase MI | Yes | 21 Pole | 3P 63A 6kA | 1 |
| Order Code | Name | Description | Quantity |
| DRS2L | Door & Latch | Door with Latch & Hinges - 1.0 mm Powder Coated Steel | 1 |
| MPS2-D | SA Type 2 STD Pre-drilled Panel | Meter Panel - 350mm x 550 mm Machined Meter Panelwith Hinges | 1 |
| MPS2-B | SA Type 2 STD Panel - Blank | Meter Panel - 350mmx550mm Blank Meter Panel with Hinges | 1 |
