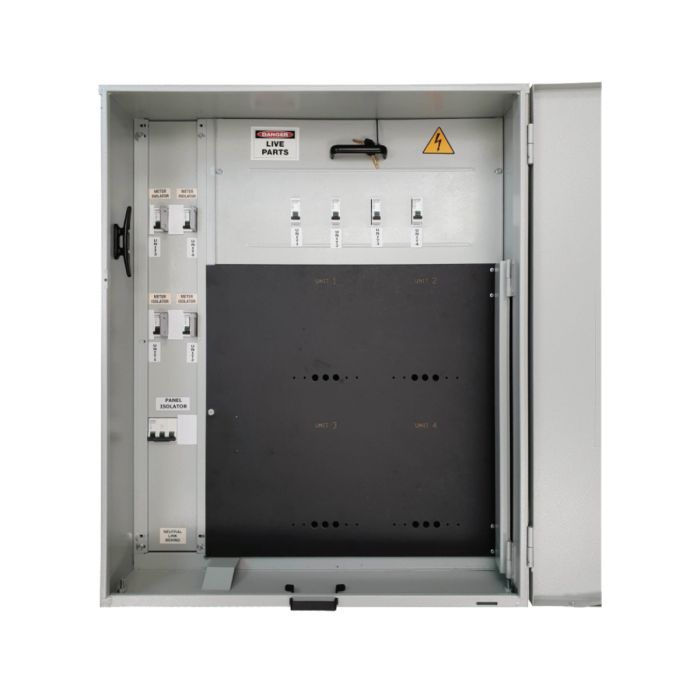

SA Type 4 Multi Tenency Enclosure
In stock
SKU
MES4
A$100.00
Quick Overview
- ETSA Utilities / SAPN Compliant door lock & two keys
- Door open strap for easy installation & maintenance
- SA Power Network Approved
- IP23 Protection Rating
- Allowance for up to 4 x Single Phase Meters
Key Features
- ETSA Utilities / SAPN Compliant door lock & two keys
- Door open strap for easy installation & maintenance
- SA Power Network Approved
- IP23 Protection Rating
- Allowance for up to 4 x Single Phase Meters
- Pre-wired available using Australia Made Flex
- Cable Complete with Insulated end Terminals
- 150mm Depth Behind Panel
- Multible Tenancy Application
- Powdercoat Finish (RAL7035)
- Designed to meet AS3000 Standard
- Full 24 Module DIN
- Dedicated DIN for 1 x 3 Phase Panel Isolator
- Dedicated DIN Provision for Tenancy (4x63A 6KA Meter Isolator MCB's Supplied)
- DIN Provision for Tenancy Main Switch MCB's (4x63A 6KA Consumer MCB's Supplied)
- Service Neutral Link 1 x 16mm2 / 1 x 25mm2 / 1 x 70mm2
- Cable tie off point / Door open catch / Door cable protector
| Specifications | Width | Height | Depth |
| Size | 700 | 850 | 325 |
| Panel | 550 | 550 | 6 |
| Neutral Grid | 2 x Ø5mm (Suits up to 10mm) 10 x Ø8mm (Suits up to 25mm) | ||
| Earth Grid | 2 x Ø5mm (Suits up to 10mm) 10 x Ø8mm (Suits up to 25mm) | ||
| Mains Nuetra | 1 x Ø5.5mm; 1 x Ø7mm; 2 x Ø9mm; 1 x 9mm x 9mm (Suits 75mm) | ||
| Order Code | Name | Meter Isolator | DIN | Panel Isolator | Quantity |
| MES4 | SA Type 4 | (N) | 24-Pole | (N) | 1 |
| MES4MI | SA Type 4 MI | 4x1Phase 63A 6kA | 24-Pole | 1 x 3 Phase 63A 6kA | 1 |
| Order Code | Name | Description | Quantity |
| PLS4-75 | SA Type Plinth (Suits SA Type 6) | SA Type 4 Plinth 3mm Steel 750(H) 700(W) 325(D) | 1 |
| DRS4L | SA Type 4 Door - With Lock | STD SA Type 4 Replacement Hinged Door | 1 |
| DRL-G | Door Lock | Keyed to SAPN & ETSA Standard | 1 |
| MPS4-3D | Spare Part - SAType 4/3 Meter Panel | SA Type 4 Hinged Meter Panel Drilled for 3 Units | 1 |
| MPS4-4D | Spare Part - SA Type 4 / 4 Meter Panel | SA Type 4 Hinged Meter Panel Drilled for 4 Units | 1 |
| MPS4-B | Spare Part - SA Type 4 Blank Meter Panel | Hinged Meter Panel Blank for Custom Projects | 1 |
