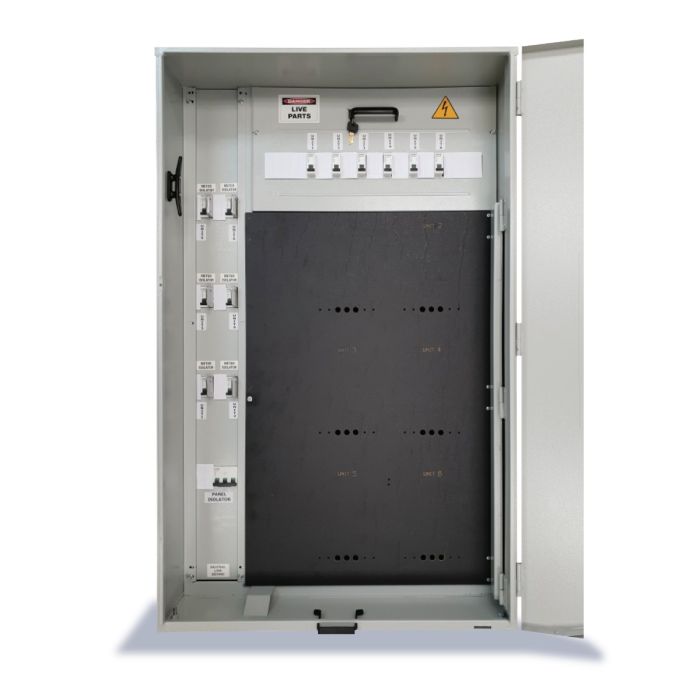

SA Type 6 Multiple Tenancy
In stock
SKU
MES6
A$100.00
Quick Overview
- SA Power Network Approved
- Designed to meet AS3000 Standard
- IP23 Protection Rating
- Dedicated DIN for 1 x 3 Phase Panel Isolator
- Dedicated DIN for 1 x 3 Phase Panel Isolator & Lock-off
Key Features
- SA Power Network Approved
- Designed to meet AS3000 Standard
- IP23 Protection Rating
- Dedicated DIN for 1 x 3 Phase Panel Isolator
- Dedicated DIN for 1 x 3 Phase Panel Isolator & Lock-off
- Provision of Panel for additional 3 Phase Lock-Off’s Allow for up to 4 x Multi Phase Meters
- Pre-wired available using Australia Made Flex Cable Complete with Insulated end Terminals
- 150mm Depth Behind Panel as required for Mutiple Tenancy Application
- Plinth, Rain Hood and flush mount available
| Specifications | Width | Height | Depth |
| Size | 700 | 1125 | 325 |
| Panel | 550 | 825 | 6 |
| Neautral Grid | 2 x Ø5mm (Suits up to 10mm) 10 x Ø8mm (Suits up to 25mm) | ||
| Earth Grid | 2 x Ø5mm (Suits up to 10mm) 10 x Ø8mm (Suits up to 25mm) | ||
| Mains Nuetral | 1 x Ø5.5mm; 1 x Ø7mm; 2 x Ø9mm; 1 x 9mm x 9mm (Suits 75mm) | ||
| Order Code | Name | Meter Isolator | DIN | Panel Isolator | Quantity |
| MES6 | Standard | (N) | 24-Pole | (N) | 1 |
| MES6-MI | Standard MI | 6 x1 Phase 63A 6kA | 24-Pole | 1 x 3 Phase 63A 6kA | 1 |
| MES6-P75H | Plinth/ Hood Mounted | 6 x1 Phase 63A 6kA | 24-Pole | 1 x 3 Phase 63A 6kA | 1 |
| Order Code | Name | Description | Quantity |
| PLS4-75 | SA Type 4 Plinth (Suits SA Type 6) | SA Type 4 Plinth 3mm Steel 750(H) 700(W) 325(D) | 1 |
| DRS6L | Door - with Lock | STD SA Type 6 Replacement Hinged Door | 1 |
| DRL-G | Door Lock | Keyed to SPAN & ETSA Standard | 1 |
| MPS6-6D | Spare Part-SA Type 6 / 6 Meter Panel | SA Type 6 Hinged Meter Pannel Drilled for 6 Units | 1 |
| MPS6-B | Spare Part-SA Type 6 Blank Meter Panel | Hinged Meter Pannel Blank for Custom Projects | 1 |
