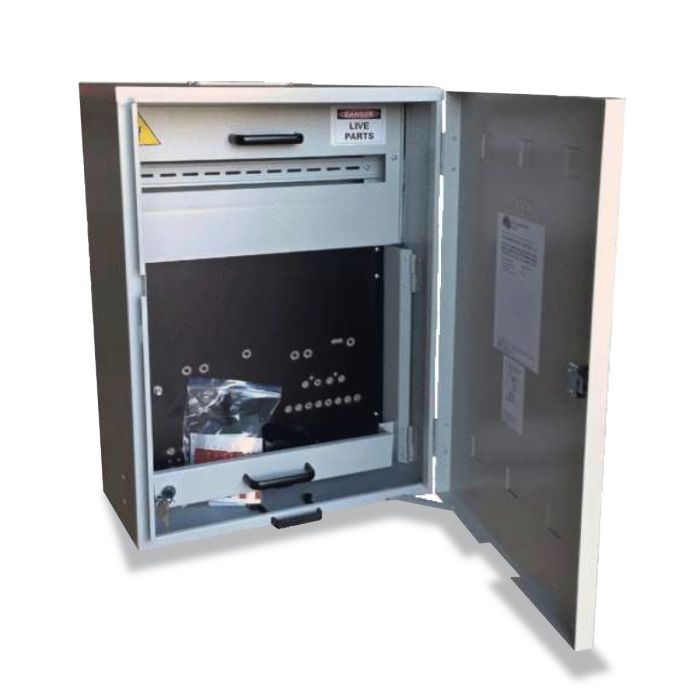

VIC Multi Phase Combination Enclosure
In stock
SKU
MEV121
$100.00
Quick Overview
- Victorian Electricity Supply Industry (VESI) Accepted
- IP23 Protection Rating
- Victorian Power Approved Internal Lock & Key (CL001)
- Suitable for up to 2 x Single Phase meters (Single Occupancy)
- Compliant with Victorian Service and Installation Rules (VESI Acceptance Number SIR140216B)
Key Features
- Victorian Electricity Supply Industry (VESI) Accepted
- IP23 Protection Rating
- Victorian Power Approved Internal Lock & Key (CL001)
- Suitable for up to 2 x Single Phase meters (Single Occupancy)
- Compliant with Victorian Service and Installation Rules (VESI Acceptance Number SIR140216B)
- 75mm Behind Meter Panel (Also available MEV1-150 with 150mm Behind Meter Panel)
- Galvanised steel construction Powder Coated Light Grey (RAL7035)
- Designed to AS/NZS 3000:2018 requirements
- 21 Module full DIN
- Metering Neutral Link 1 x 16mm2 /1 x 25mm2 / 1 70mm2
- Hand Operated Service Fuse Holder (22mm Fuse Link Diameter) Suitable for up to 100A / 35mm2 Supply
- Door open catch / Door cable protector / Equipped with CL001 fuse lock protection
- Door open strap for easy installation & maintenance
- Door Document Holder

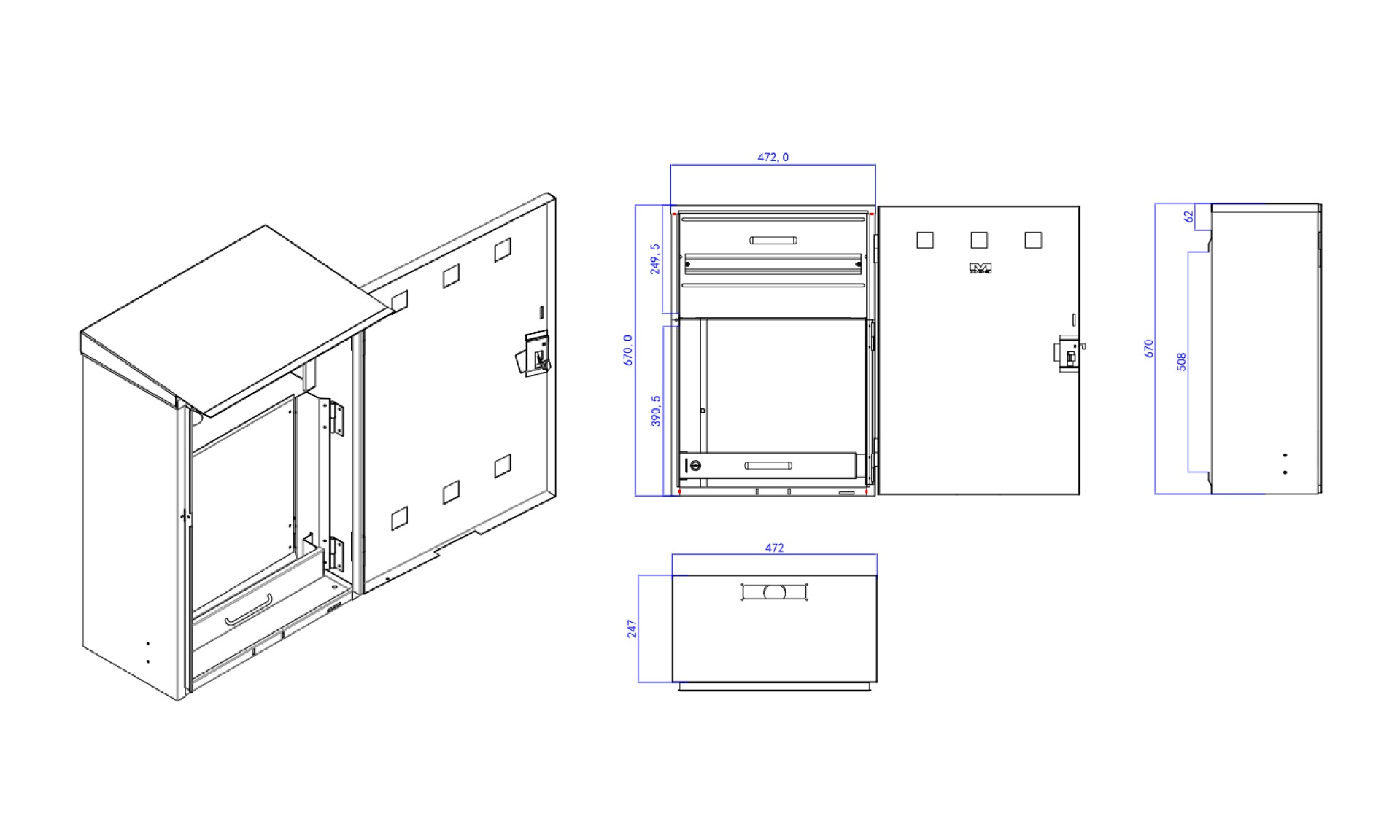

| Specifications | Width | Height | Depth |
| Size - MEV121 | 470 | 670 | 270 |
| Meter Panel | 400 | 380 | 6 |
| Neutral Grid | 11 x Ø5mm (Suits up to 10mm) 9 x Ø8mm (Suits up to 25mm) | ||
| Earth Grid | 10 x Ø5mm (Suits up to 10mm) 1 x Ø8mm (Suits up to 25mm) | ||
| Product | Order Code | Meter Isolator | Quantity |
| Combination (75mm) | MEV121 | Meter + 21 DIN Enclosure 75mm Behind Panel | 8 |
| Combination (75mm) | MEV121 | Meter + 21 DIN Enclosure 75mm Behind Panel | 20 |
| Combination (75mm) | MEV121 | Meter + 21 DIN Enclosure 75mm Behind Panel | 60 |
| Accessories/Spare Parts | Order Code | Description | Quantity |
| Spare Part - MEV121 Escutcheon | EV121 | MEV121 Replacement Escutcheon Plate | 1 |
| Spare Part - MEV121 Door | DRV121 | MEV121 Replacement Hinged Door | 1 |
| Spare Part - MEV1 STD. Panel | MPV1-D | MEV1 Hinged Meter Pannel Drilled for Victorian Standard | 1 |
| Spare Part - MEV1 Blank Panel | MPV1-B | MEV1 Hinged Meter Pannel Blank for Custom Projects | 1 |
| VIC 1 Rain Hood | RHV1 | Victorian Single Tennancy Rain Hood | 1 |
| VIC 1 Plinth 650 | PLV1-65 | 3mm Steel 650mm(H) x 475mm(W) x 250mm(D) | 1 |
| VIC 1 Plinth 1000 | PLV-100 | 3mm Steel 1000mm(H) x 475mm(W) x 250mm(D) | 1 |
