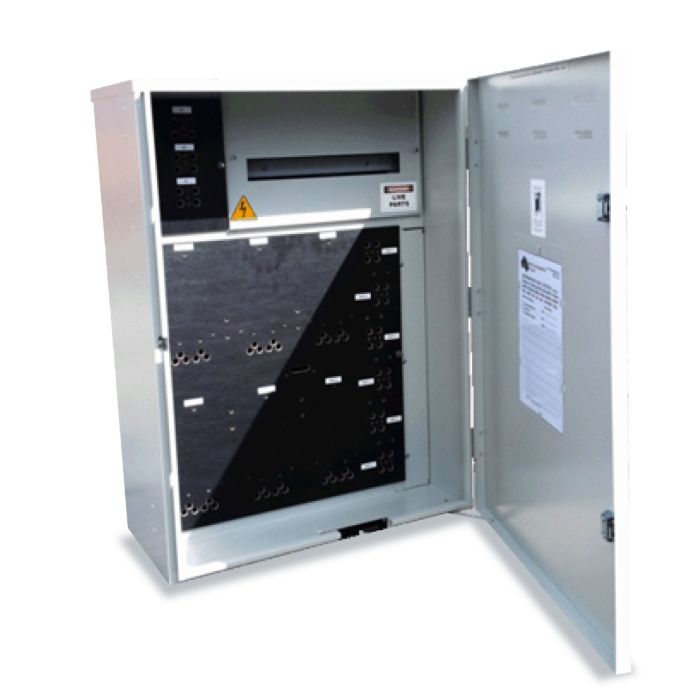

Multiple Tenancy 9 Meter Enclosures
In stock
SKU
MEV9
A$100.00
Quick Overview
- Victorian Electricity Supply Industry (VESI) Accepted
- IP23 Protection Rating
- SPD Fuse Holder on Separate Panel
- Earth & Neutral Bar Grid Fitted & Earthed to Enclosure
Key Features
- Victorian Electricity Supply Industry (VESI) Accepted
- IP23 Protection Rating
- SPD Fuse Holder on Separate Panel
- Earth & Neutral Bar Grid Fitte & Earthed to Enclosure
- Full 18 Module DIN Capacity Switchboard
- Heavy Duty Hinged Door (Removable)
- Generous Cable Access Top / Bottom
- Galvanised Steel Construction
- Powder Coating Finish Light Grey (RAL7035)
- Parts Bag Included
- Provision For Up To Six Single Phase Meters
- Available Pre-Wired with 16mm Australian Made Flex Cable
- Fuse Holders & Sub Mains MCB's Installed with Pre Wired
- Provision For Up To Nine MetersPlinth & Rain Hood Available
| Specifications | Width | Height | Depth | Quantity |
| Size | 690 | 1235 | 355 | 1 |
| Service Panel | 200 | 260 | 6 | 1 |
| Meter Grid | 600 | 900 | 6 | 1 |
| Neutral Grid | 2 x Ø5mm (Suits up to 10mm) 10 x Ø8mm (Suits up to 25mm) | |||
| Earth Grid | 1 x Ø5mm (Suits up to 10mm) 10 x Ø8mm (Suits up to 25mm) | |||
| Pre - Wired | |||||
| 16 mm Flex Pre - wired Options | Order Code | Service Fuses | Meter Fuse Holders | Sub Mains MCB | Quantity |
| Single Phase 7 Meter | PW1 - MEV9 - 7 | 3 X 100A | 7 X 100A | 7 X 1P 50A | 1 |
| Single Phase 8 Meter | PW1 - MEV9 - 8 | 3 X 100A | 8 X 100A | 8 X 1P 50A | 1 |
| Single Phase 9 Meter | PW1 - MEV9 - 9 | 3 X 100A | 9 X 100A | 9 X 1P 50A | 1 |
| Order Code | Name | Description | Quantity |
| RHV6 | Vic 9 Rain Hood | Victoria 6/9 Meter RainHood / Canopy | 1 |
| PLV6-65 | Vic 9 Plinth | Victorian 6/9 Meter Plinth 3mm Steel 650(H) 690(W) 300(D) | 1 |
| DRV9L | Spare Part - Vic 9 Door & Latch | STD VIC Type 9 replacement Hinged Door | 1 |
| MPV9-B | Spare Part - Vic 9 Blank Panel | Hinged Panel Blank for Custom Projects | 1 |
| MPV-SF | Spare Part - Service Fuse Panel | Hinged Service Fuse Panel 200mm x 260mm x 6mm | 1 |
